Z-Trak Express系列

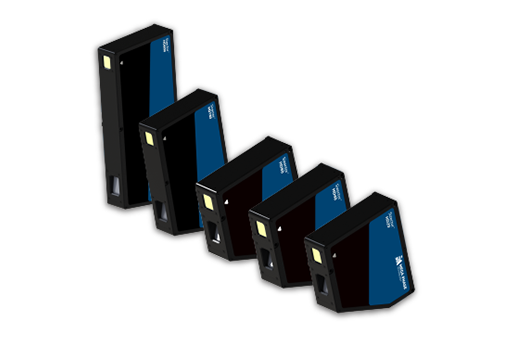

Z-Trak Express 是 Teledyne 面向工业自动化检测推出的经济型3D激光轮廓传感器，采用激光三角测量技术，适用于在线尺寸测量、表面检测和机器人引导。
分享
描述
|
产品型号 |
最大物体高度 (mm) |
工作距离 (mm) |
物体宽度 (mm) |
激光波长 (nm) |
重复性 (±μm) |
|
Z-Trak Express-1K5-0040-B2 |
40mm |
79.5 mm |
109.0 mm |
405nm |
1.00-1.50 μm |
|
Z-Trak Express-1K5-0040-R2 |
40mm |
79.5 mm |
109.0 mm |
660nm |
1.00-1.50 μm |
|
Z-Trak Express-1K5-0100-B2 |
100mm |
245.0 mm |
204.0 mm |
405nm |
3.0-4.0 μm |
|
Z-Trak Express-1K5-0100-R2 |
100mm |
235.0 mm |
204.0 mm |
660nm |
3.0-4.0 μm |
|
Z-Trak Express-1K5-0180-B2 |
180mm |
603.0 mm |
452.0 mm |
405nm |
6.0-20.0 μm |
|
Z-Trak Express-1K5-0180-R2 |
180mm |
603.0 mm |
452.0 mm |
660nm |
6.0-20.0 μm |
|
Z-Trak Express-1K5-0675-B3 |
675mm |
725.0 mm |
1720.0 mm |
405nm |
10.0-30.0 μm |
|
Z-Trak Express-1K5-0675-R3 |
675mm |
725.0 mm |
1720.0 mm |
660nm |
10.0-30.0 μm |
